SP104Ex
$2,100.00

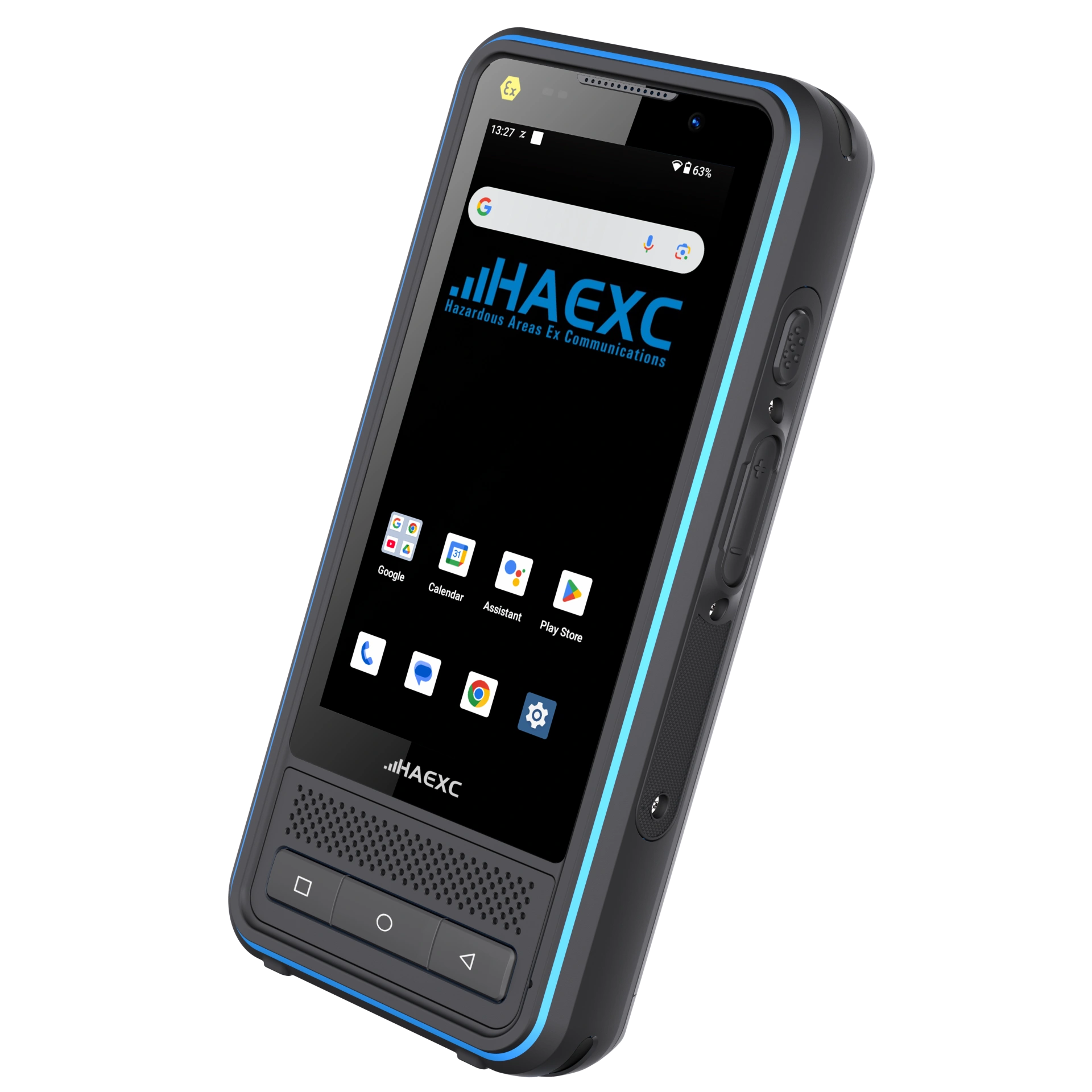

Introducing the HAEXC SP104Ex – Rugged Performance Meets Smart Mobility for Hazardous Zones
The HAEXC SP104Ex is a powerful 4G intrinsically safe smartphone designed for Zone 1/21 hazardous areas. This ATEX zone 1 phone merges industrial-grade toughness with advanced Android functionality, delivering a modern solution for high-risk environments where safety and performance cannot be compromised.
Specifications
- Android 14
- 4 inch Display
- RAM 6GB + ROM 128 GB
50 MP Rear Camera
Features
Powered by Android 14 and a MediaTek Octa-Core 2.2 GHz processor, the SP104Ex supports seamless app performance and system stability. It comes equipped with 6 GB RAM and 128 GB storage, enabling smooth multitasking and ample space for mission-critical applications.
Certified by ATEX and IECEx, the SP104Ex withstands extreme temperatures (-20 °C to +55 °C) and harsh conditions with IP68 protection and 1.2m drop resistance. A powerful removable 4000mAh battery ensures long-lasting operation in the field, supported by a full set of accessories for easy deployment.
Technical Features
Operating System | Android™ 14 |
Processor | MediaTek 6765 Octa Core 2.2 GHz |
Memory | RAM 6GB + ROM 128GB |
Frequencies | LTE: B1/2/3/4/5/7/8/18/19/20/26/28a&b/34/38/3940/41 |
Dimensions | 148 x 70.5 x 25 (mm), 325g |
Display | 4.0” LCD, 540×1080(VGA), Multi-Point Capacitive Gorilla Glass (Impact & Scratch Resistance), Support Glove Mode |
Battery | Li-Ion, 4000mAh, Replaceable |
Camera | 8MP Front Camera |
Connectivity | Dual SIM (Nano), VoLTE |
Degree of Protection | IP68 (Water & Dust), Drop Test 1.2 m |
Datasheet
Additional Features
With a vibrant 4.0” Gorilla Glass touchscreen, support for glove mode, and dedicated PTT/SOS/FN keys, the SP104Ex is purpose-built for field communication. Enhanced by Bluetooth 5.1, dual-band Wi-Fi, NFC, and GNSS positioning (GPS, GLONASS, BeiDou, Galileo), it ensures complete connectivity even in remote areas.
Featuring a high-resolution 50 MP rear camera, AI noise reduction microphones, and waterproof speaker, this ex proof phone empowers workers with smarter, safer communication.

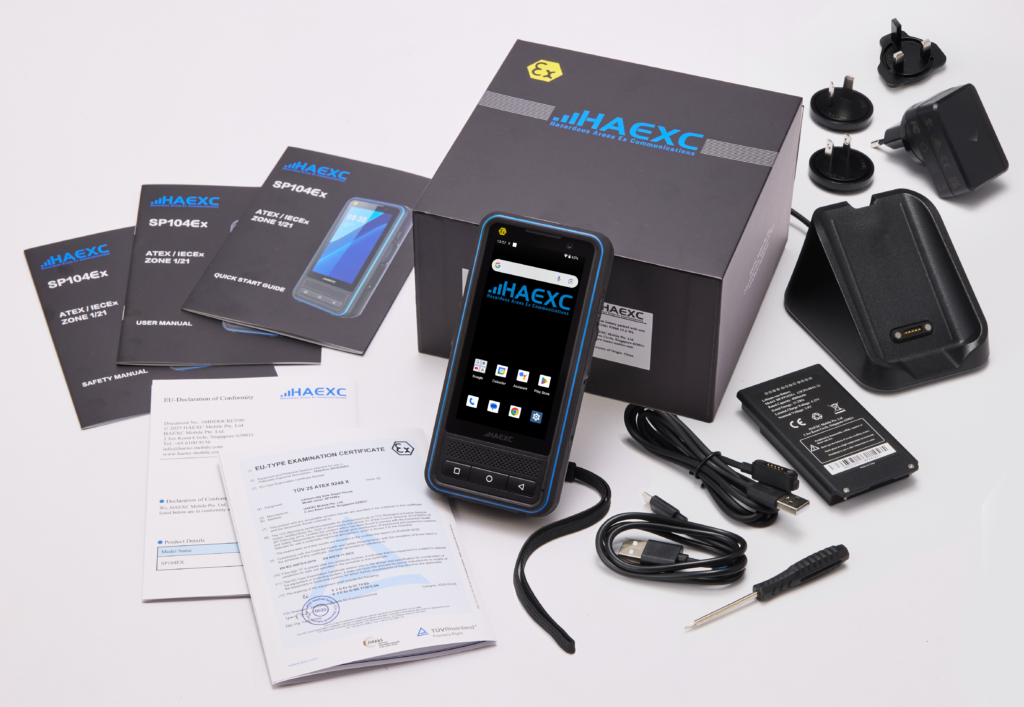

Package Content
- SP104Ex Smart Phone
- 4000mAh Li-Ion Battery
- Travel Charger (with Multi-Adaptors)
- Type-C USB Cable
- Magnetic USB Cable
- Docking Station
- Wrist Strap
- Screwdriver
- Documents
Approval
ATEX (Europe)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T130°C Db
Ta = -20 °C to +55 °C
IECEx (International)
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T130°C Db
Ta = -20 °C to +55 °C
